Keyboard tuner
For capacitive microphone line architecture design
Mic. & Aux a signal mixer
Mic. with balanced input design
High Power PC Headphone output
Outline
|

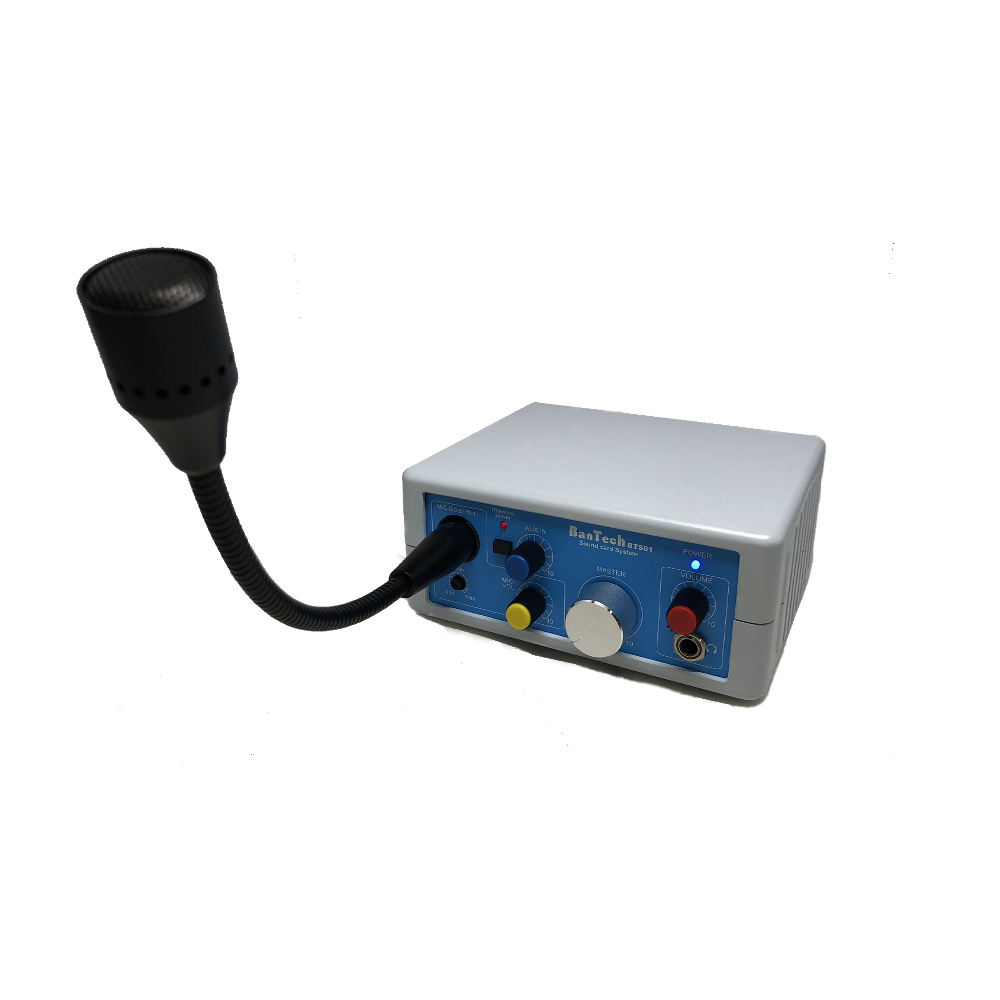

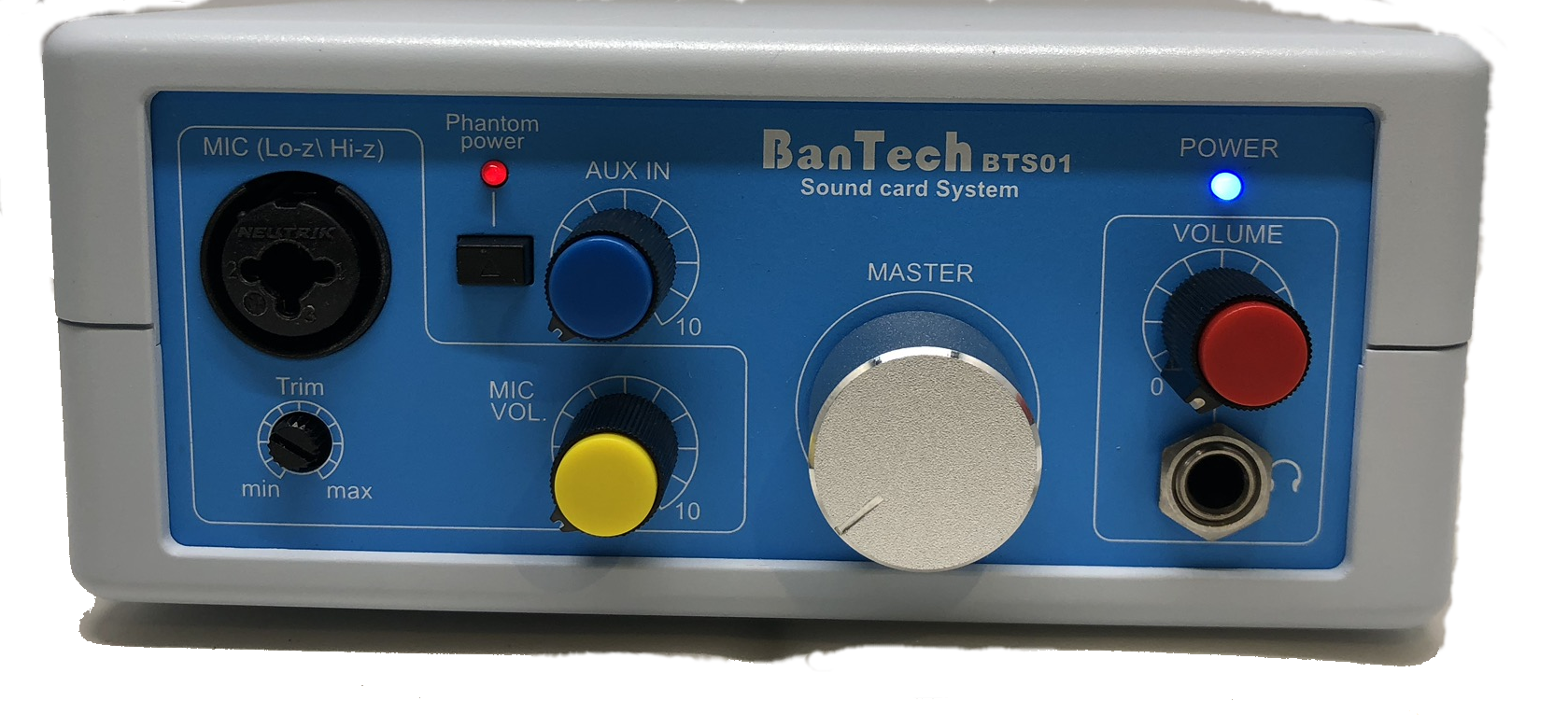

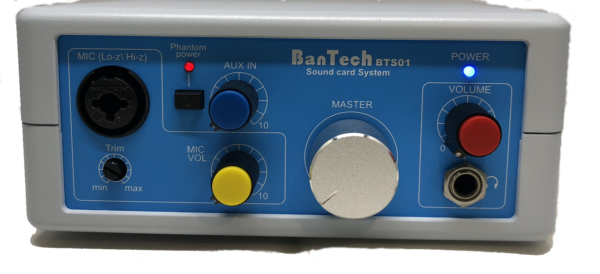

BTS01
|
|
Mixing
capability
&I/O
|
Mixing channels
|
Hi-z/Lo-z+Aux in+USB (sound Card)
|
AUX IN
|
Stereo (3.5Phone Jack)
|
|
Master
|
Stereo (RCA Jack)
|
|
Mic. inputs
|
1 (Hi-z/Lo-z) Balance&Unbalance
|
|
Phantom power
|
+48V DC; ON/OFF
|
|
Headphone
|
6.30 phone jack
|
|
Direct/Insert switch
|
Mixer/mixer+ sound card
|
|
Power and others
|
Micro USB (Power supply&PC)
|
General specifications
|
||
Total harmonic distortion
|
Less than 0.3%
|
|
Frequency response
|
20Hz-20kHz (0~3dB)
|
|
Gain Range (Trim)
|
50db
|
|
Maximum input Level
|
+4dBu
|
|
Headphone output
|
>200mW/8 歐姆
|
|
Mic. In to L/R output Level
|
-72dB
|
|
Hum & noise
level
|
Equivalent input noise
|
-120dBu (A-Weighted)
|
Residual output noise
|
-64dBu (A-Weighted)
|
|
Crosstalk
|
-62dB (at f =1KHz)
|
|
Sound card
|
||
DAC Sampling Rate: (16 bit)
|
USB Audio Interface-8,16, 22.05, 32, 44.1….
|
|
OTHERS
|
||
Power consumption
|
DC 5V/2A (SB Jack)
|
|
W x H x D (mm)
|
166 x 75x 160
|
