BTD3150
2020-11-12BTR103S
2020-11-16

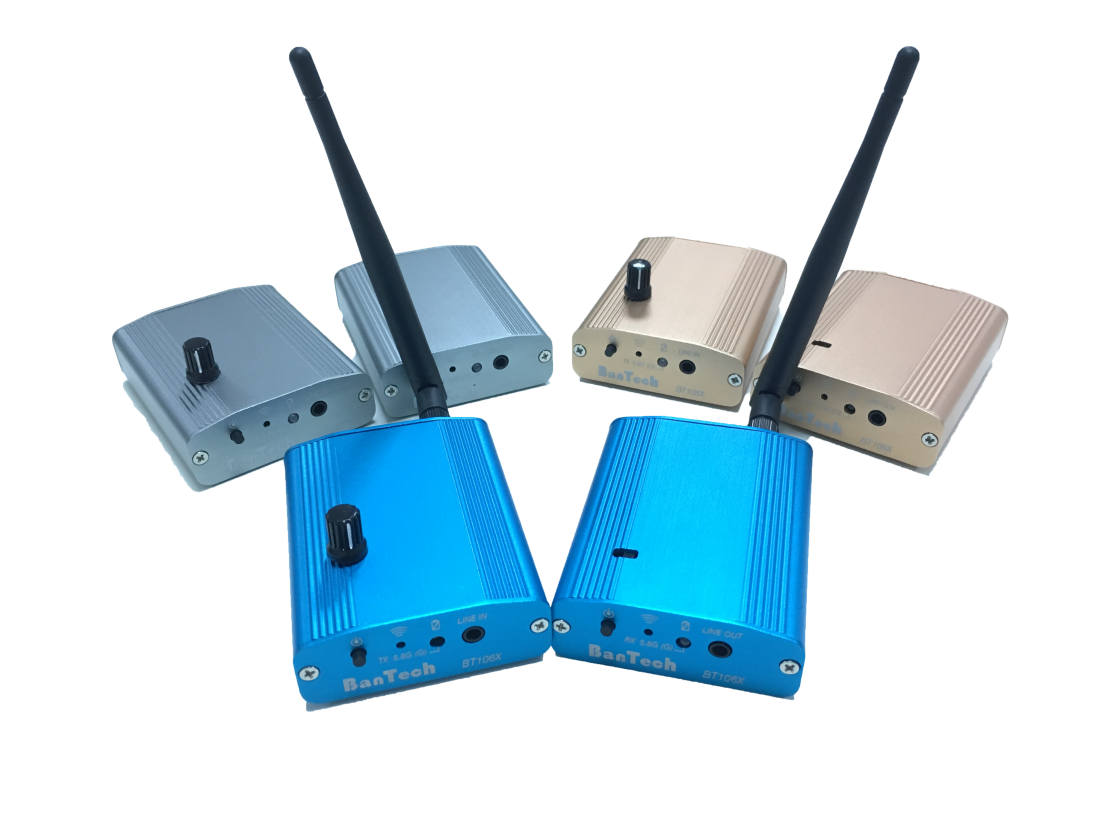

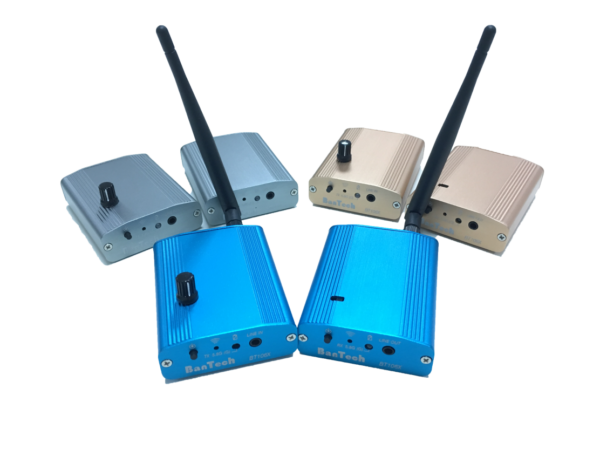

5.8GHz Tx-Rx module
DATA SHEET
Specifications |
Item |
RX |
TX |
Power Supply |
DC 5V/1A |
Power Dissipation |
2W |
3W |
Power Output(RMS) |
1V |
|
Frequency Response |
20Hz~12kHz (-1dB ~ -3dB) |
Input Sensitivity |
|
600mV |
T.H.D |
≦1.2% |
S/N |
≧65dB(AUX) |
Audio Jack |
3.5mm jack output |
3.5mm jack input |
Dimensions(WxHxD) |
62x37x94mm |
62x24x94mm |
Description
DATA SHEET
Specifications |
Item |
RX |
TX |
Power Supply |
DC 5V/1A |
Power Dissipation |
2W |
3W |
Power Output(RMS) |
1V |
|
Frequency Response |
20Hz~12kHz (-1dB ~ -3dB) |
Input Sensitivity |
|
600mV |
T.H.D |
≦1.2% |
S/N |
≧65dB(AUX) |
Audio Jack |
3.5mm jack output |
3.5mm jack input |
Dimensions(WxHxD) |
62x37x94mm |
62x24x94mm |
