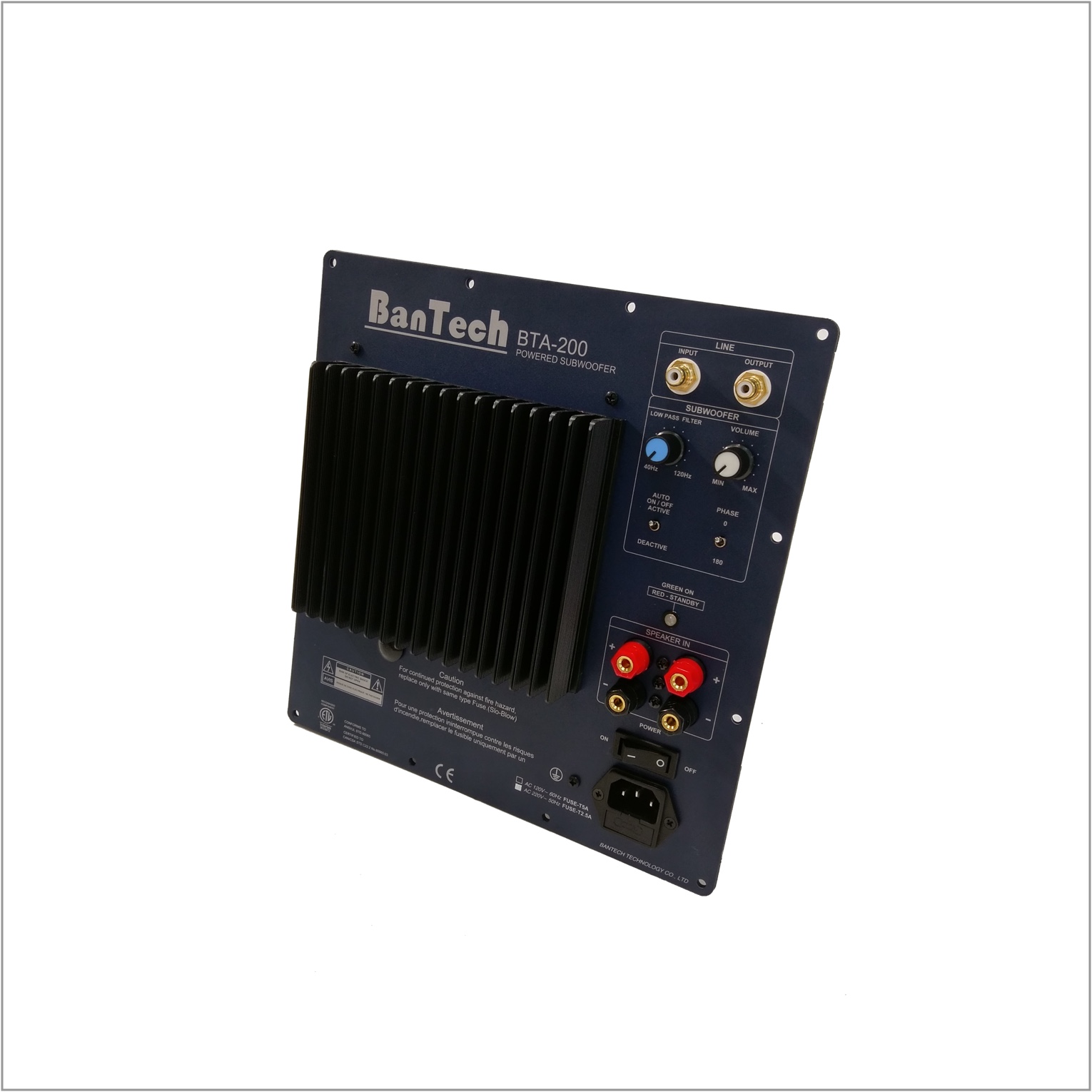

BTA200/BTA100
**Power Output 250W/4 Ohms Subwoofer Amp
**Automatic signal compression circuit
**Auto on switch “Phase switch(0-180)
**Include standby power saving mode
**Power amplifier is the type Class AB
**Include protect circuit for temperature and speak input
**Include low pass filter & vol. control rotary VR
描述
規格
Item |
Specification |
Power |
AC 120V AC 240V 50Hz/60Hz |
Power Dissipation |
500W |
Power Output |
250W Subwoofer (RMS) |
Frequency Response |
20Hz -20KHz |
Input sensitivity |
300mV |
S/D |
≦0.2% (1W 1KHz) |
S/N |
≧70dB |
Audio Input |
RCA jack / BANANA jack |
Dimensions |
BTA100: 190 X 260 X 128 mm |
(WXHXL) |
BTA200: 255 X 260 X 116 mm |
