BT105N
TX-mixer
5.8GHZ wireless transmitter
**LED Display L&R Output
**Input signal(Aux1/Aux2/Line)
**Input RCA Jack/3.5mm Phone Jack
**Built-in lithium battery, sustainable work for 4 hours

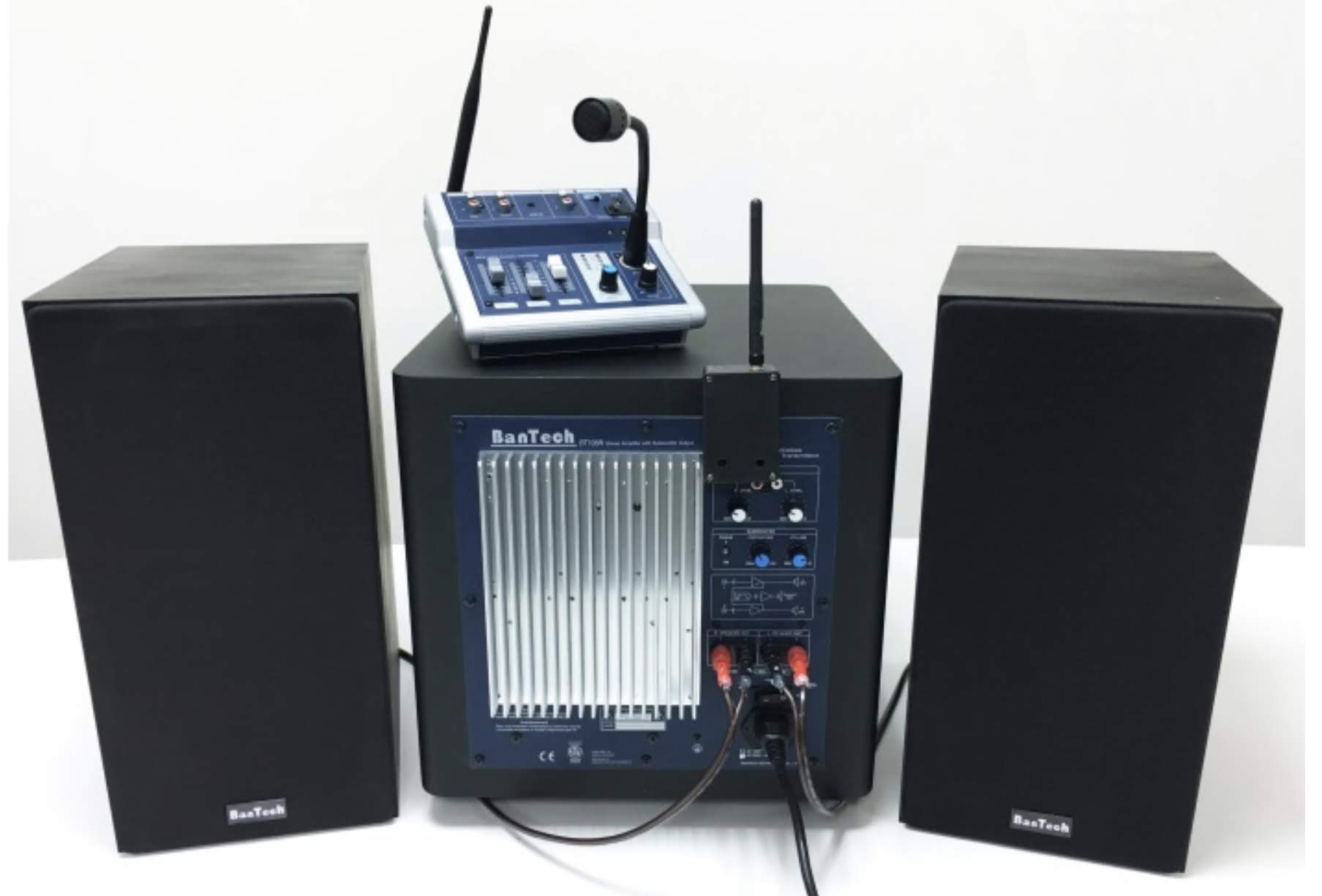

BT105N
Can be installed 5.8G receiver box, and TX-mixer with the usb
Output 70W/ 4 Ohms(RMS) Subwoofer Amp.
Built-in 35W*2 / 8 Ohms(RMS) Stereo output
Input RCA Jack / Output: Banana Jack
Include temperature / SPK /Power Tr. short circuit protection device
Automatic signal compression circuit
Auto Standby , low standby power consumption 0.4W
Phase control switch
Speaker configuration can be any match
Description
規格:
Item
|
Amp. Specification
|
Power
|
AC 120V / AC 240V 50HZ/60HZ
|
Power Dissipation
|
500W
|
Power Output
|
Subwoofer-70W/4 Ohms (RMS) Class AB
|
Stereo-30W 2/8 Ohms(RMS) – Class AB
|
Frequency Response
|
20Hz -20KHz
|
Low pass frequency
|
30Hz– 120Hz (Frequency adjustable)
|
Input sensitivity
|
100mV
|
S/D
|
≦0.1% (Full Power 1KHz)
|
S/N
|
≧70dB
|
Dimensions (WXHXD)
|
Tx-Mixer 185X220X68 mm
|
BT105N 274x284x110 mm
|
